Two In One Smart Mini Combo RTPL

Download Pdf

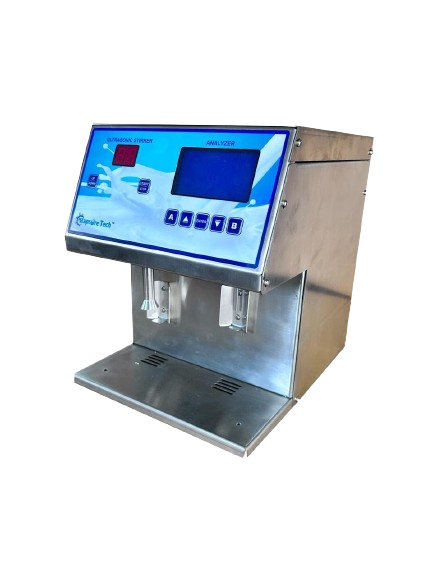

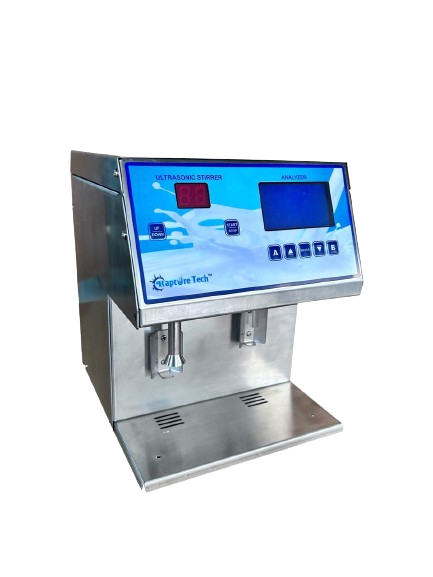

Introducing our Two-In-One Smart Mini Combo RTPL: Compact, versatile, and efficient. Combines Milk Analyzer and Ultrasonic Digital Stirrer in one, enhancing milk collection productivity.

PRODUCT SPECIFICATIONS

  • Brand: RTPL
  • Model: Mini Combo - RTPL
  • Operating Voltage: 12 Volt DC
  • Power Supply: External Adaptor (230V AC To 12V DC / 5A)
  • Power consumption (W): 50 W
  • Peak Power (W): 80 W
  • Operating Temperature: 5 to 60 Degree °C
  • Relative Humidity: 30 to 85 %
  • Sample Volume: 10 ml.
  • Milk Temperature: 10 To 35 °C
  • Weight: 5.0 Kg

Technical Specification of Milk Analyzer

  • Direct Measuring Parameters:
  • 1. FAT: 0.1% to 15% with accuracy +/-0.1%
  • 2. SNF: 0.1% to 15% with accuracy +/-0.1%
  • 3. Temperature : 5°C to 45°C
  • Calculated Parameters:
  • 1. CLR: 20 to 40 with accuracy +/-0.5
  • 2. Protein: 2% to 7% with accuracy +/-0.2
  • 3. Lactose: 0.01% to 10% with accuracy +/-0.2
  • 4. Added water in Milk: 0% to 99% with accuracy +/-1%
  • Resolution:
  • 1. FAT, SNF, Lactose, Protein, Salts: 0.1%
  • 2. Temperature : 1°C
  • 3. CLR: 0.5
  • 4. Added Water: 1%
  • Calibration modes:
  • 1. 5 Cycles Automatic
  • 2. External Weighing scale
  • Cleaning modes:
  • 1. Daily / Weekly & Monthly with Special
  • 2. cleaning solution

Technical Specification of Ultrasonic Digital Stirrer

  • Ultrasonic Ceramic Piezo Transducer base digital design.
  • Design as per NDDB Noms.
  • EMI, High voltage surges and Transient protection.
  • S.S. 304 Vibrating tool for long life operation.
  • 1 ~ 40 Sec adjustable timer from Front Panel keypad .
  • Transducer Frequency 25 Khz. Adjustable up to +/- 2Khz .
  • Qualified for overheat burning.
